Electro magnets are engineered for use in high volume and deep burden applications. Their primary advantages are their "deep reach" and the ability to be turned on and off. Mounted over a vibratory bed or belt conveyor, these magnets set the industry standard for strength.

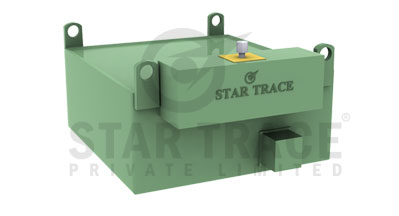

Electro Suspension Magnet consisting of aluminum or copper wound coils immersed in a transformer oil (for prevention of overheating or shorting) or air-cooled for extreme or dusty environments.All electro suspension magnet comes along with control panel. Operating heights up to 150 mm to 450 mm are available. Manually cleaned magnets can be supplied with a stripper mechanism. No power consumption, virtually maintenance free.

The ERBM Series magnet is a powerful oil-cooled electromagnetic plate magnet, suspended over the conveyed product stream. The magnet should be located in an area on the production line that allows easy access for proper maintenance of the magnet and it should be operated in an area where no integral parts of the conveying system can become magnetized; such as idler rollers, pulleys or belt support plates.

Manual Clean (MC)units must be periodically turned off in order to discharge iron accumulated on the face of the magnet. They are suitable for applications where only occasional tramp iron is expected. These magnets are usually suspended from a travelling trolley so that they can be swung clear of the conveyor before the iron is released.

Self-Clean (SC) Suspended Electromagnets provide continuous, automatic removal of tramp iron and feature a heavy-duty belt, a channel frame for supporting the pulleys, adjustable belt take-up and drive. They are recommended where a large amount of tramp iron is expected or where there may be limited access to the magnet for cleaning purposes.

• Rugged-all-welded construction can efficiently prevent the coil from erosion of moisture, dust and harmful gas. Good environment and climate suitability, safe and reliable in operation and convenient maintenance.
• The magnetic circuit is designed in optimization with deeper permeability,and its geometrical figure in the space magnetic field shaped semi-sphere so that will produce much stronger magnetic force compared with the other wares.
• Field winding coil treated by vacuum desiccation and filled with special packing material to improve its mechanical and electrical performances and keep a long service life.
• Easy to form a complete set with other equipments to meet the different requirements under all kinds of circumstances.The relevant commutating equipments have complete functions available.

• Stainless steel wear plates.
• Turnbuckles.
• Volt Meters.
• Amp meters.
• Line fuses.
• Disconnect switch.
